SMD & COB & GOB LED Leej twg yuav dhau los ua tus qauv coj thev naus laus zis?
Txij li thaum txoj kev loj hlob ntawm LED Zaub Kev Lag Luam, ntau yam kev tsim khoom thiab ntim cov txheej txheem ntawm Me-pitch ntim tshuab tau tshwm sim ib zaug.
Los ntawm yav dhau los DIP ntim tshuab rau SMD ntim tshuab, mus rau qhov tshwm sim ntawm COB ntim tshuab, thiab thaum kawg mus rau qhov tshwm sim ntawmGOB technology.
SMD Ntim Technology
SMD LED zaub technology
SMD yog lub npe luv ntawm Surface Mounted Devices.LED khoom encapsulated los ntawm SMD (surface mount technology) encapsulate teeb khob, brackets, wafers, leads, epoxy resin, thiab lwm yam ntaub ntawv mus rau hauv lub teeb hlaws dai ntawm txawv specifications.Siv lub tshuab tso rau hauv high-speed los solder lub teeb hlaws ntawm lub rooj tsav xwm Circuit Court nrog high-kub reflow soldering los ua cov khoom siv nrog cov pitches sib txawv.
SMD LED technology
SMD qhov sib nrug me me feem ntau nthuav tawm cov teeb ci LED hlaws lossis siv lub npog ntsej muag.Vim tias cov cuab yeej paub tab thiab ruaj khov, tsis tshua muaj nqi tsim khoom, zoo cua sov dissipation, thiab kev saib xyuas yooj yim, nws kuj muaj feem ntau hauv LED daim ntawv thov kev lag luam.
SMD LED zaub lub ntsiab siv rau sab nraum zoov tsau LED zaub billboard.
COB Ntim Technology
COB LED zaub
Lub npe tag nrho ntawm COB ntim tshuab yog Chips on Board, uas yog cov cuab yeej siv los daws qhov teeb meem ntawm LED tshav kub dissipation.Piv nrog rau hauv-kab thiab SMD, nws yog tus cwj pwm los ntawm kev txuag chaw, ua kom yooj yim rau kev ntim khoom, thiab muaj cov txheej txheem tswj xyuas thermal.
COB LED technology
Lub nti liab qab adheres rau qhov sib txuas ntawm substrate nrog conductive los yog tsis-conductive kua nplaum, thiab tom qab ntawd xaim kev sib txuas yog ua kom paub txog nws cov hluav taws xob sib txuas.Yog tias cov nti liab qab raug ncaj qha rau saum huab cua, nws raug cuam tshuam los ntawm kev sib kis los yog kev puas tsuaj rau tib neeg, uas cuam tshuam los yog ua rau lub zog ntawm cov nti, yog li cov nti thiab cov xov hlau sib txuas yog encapsulated nrog cov kua nplaum.Tib neeg kuj hu hom encapsulation no soft encapsulation.Nws muaj qee qhov zoo ntawm kev tsim khoom, tsis tshua muaj thermal kuj, lub teeb zoo, daim ntawv thov, thiab tus nqi.

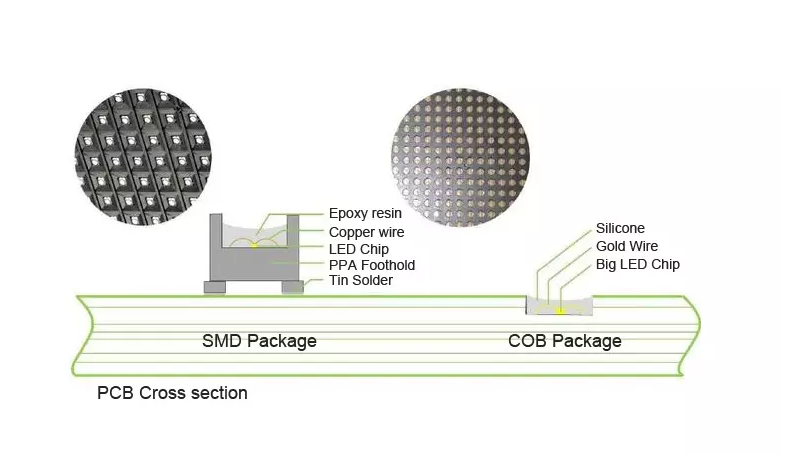

SMD-VS-COB-LED-Display
COB LED zaub lub ntsiab siv rau sab hauv tsev thiab me me suab nrog Zog txuag LED Screen zaub.
GOB Technology txheej txheem
GOB LED zaub
Raws li peb txhua tus paub, peb lub tshuab ntim khoom loj ntawm DIP, SMD, thiab COB txog tam sim no muaj feem xyuam rau LED nti-theem thev naus laus zis, thiab GOB tsis koom nrog kev tiv thaiv ntawm LED chips, tab sis ntawm SMD zaub module, SMD ntaus ntawv. Nws yog ib hom kev tiv thaiv technology uas tus PIN ko taw ntawm lub bracket yog ntim nrog kua nplaum.
GOB yog lub npe luv ntawm Glue on board.Nws yog ib qho cuab yeej siv los daws qhov teeb meem ntawm LED teeb tiv thaiv.Nws siv cov khoom tshiab pob tshab los ntim cov substrate thiab nws lub ntim ntim LED los tsim kev tiv thaiv zoo.Cov khoom siv tsis tsuas yog muaj super siab transparency tab sis kuj muaj super thermal conductivity.Lub suab me me ntawm GOB tuaj yeem hloov mus rau ib puag ncig hnyav, paub txog cov yam ntxwv ntawm cov dej noo-pov thawj, tsis muaj dej, plua plav pov thawj, tiv thaiv kev sib tsoo, thiab tiv thaiv UV.
Piv nrog rau cov tsoos SMD LED zaub, nws cov yam ntxwv muaj kev tiv thaiv siab, noo noo-pov thawj, tsis muaj dej, tiv thaiv kev sib tsoo, tiv thaiv UV, thiab tuaj yeem siv rau hauv qhov chaw hnyav dua kom tsis txhob muaj teeb meem loj hauv cheeb tsam tuag thiab poob teeb.
Piv nrog rau COB, nws cov yam ntxwv yog kev saib xyuas yooj yim dua, kev saib xyuas qis dua, pom lub kaum sab xis loj dua, kab rov tav saib lub kaum sab xis, thiab lub kaum sab xis saib ntsug tuaj yeem ncav cuag 180 degrees, uas tuaj yeem daws qhov teeb meem ntawm COB tsis muaj peev xwm sib tov teeb, loj modularization, xim sib cais, pluag nto flatness, thiab lwm yam teeb meem.
GOB lub ntsiab siv nyob rau sab hauv tsev LED Daim Ntawv Tshaj Tawm Zaub Digital Advertising Screen.
Cov kauj ruam ntau lawm ntawm GOB series cov khoom tshiab tau muab faib ua 3 kauj ruam:
1. Xaiv cov ntaub ntawv zoo tshaj plaws, lub teeb hlaws, kev lag luam cov kev daws teeb meem ultra-siab IC, thiab cov chips LED zoo.
2. Tom qab cov khoom sib dhos, nws muaj hnub nyoog rau 72 teev ua ntej GOB potting, thiab lub teeb raug kuaj.
3. Tom qab GOB potting, laus rau lwm 24 teev kom paub meej tias cov khoom zoo.
Hauv kev sib tw ntawm me me-pitch LED ntim tshuab, SMD ntim, COB ntim tshuab, thiab GOB technology.Raws li rau leej twg ntawm peb tuaj yeem yeej qhov kev sib tw, nws nyob ntawm kev siv tshuab siab heev thiab kev ua lag luam txais.Leej twg yog tus yeej kawg, cia peb tos thiab saib.
